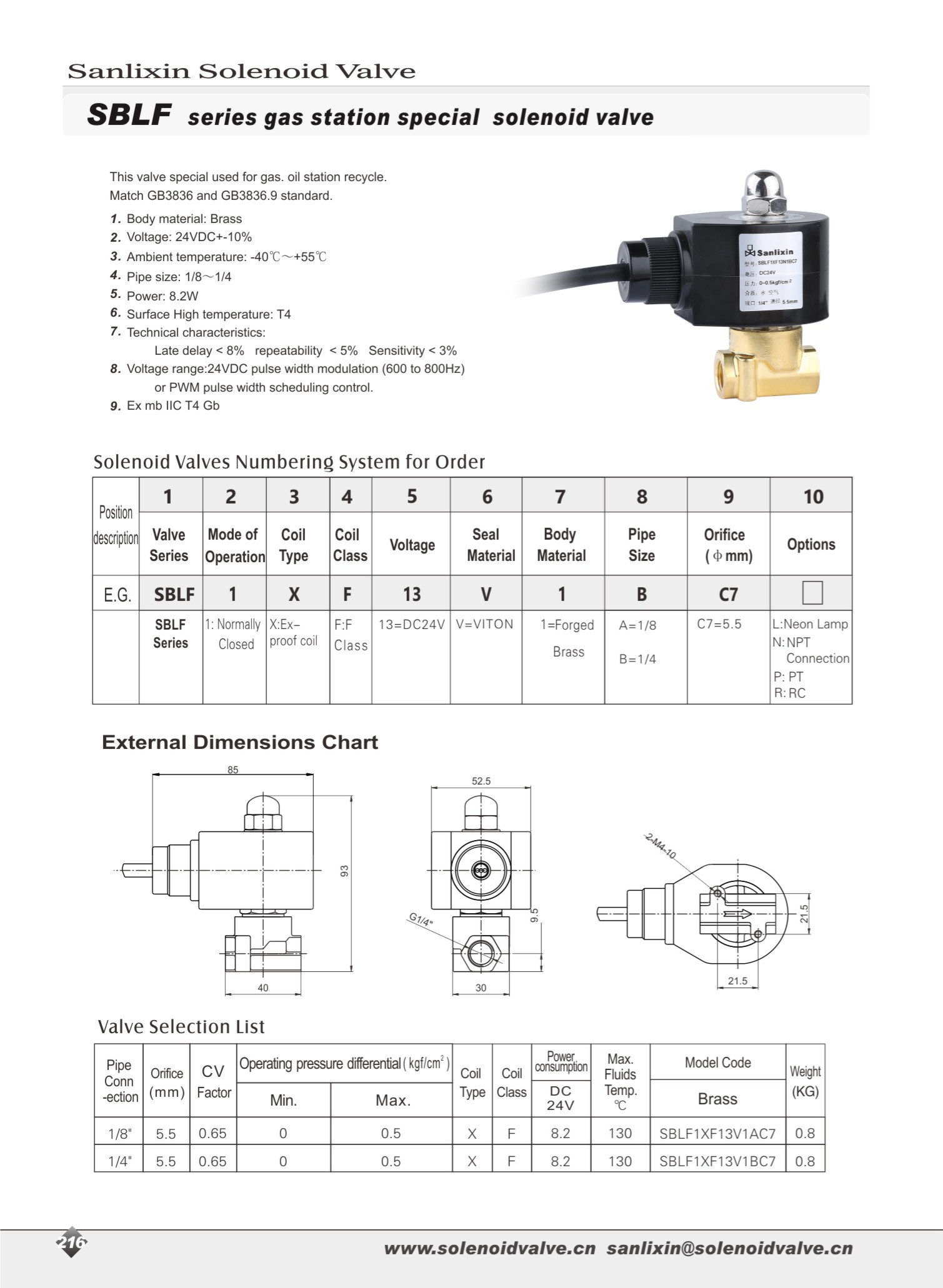

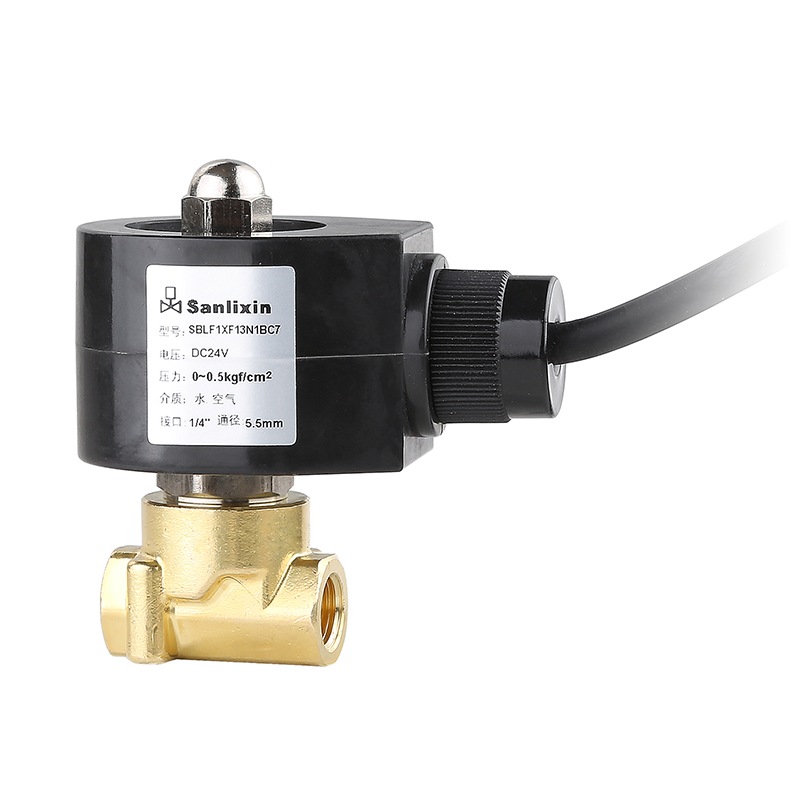

SBLF series gas station special solenoid valve

Voltage: 24VDC+-10%；Ambient temperature:-40℃~+55℃；Pipe size: 1/8~1/4；Power: 8.2W
Availability:
Inquire Add to Basket

sharethis sharing button

  • SBLF

  • Sanlixin

2_241

Previous:
Next:
Body material:Brass Voltage: 24VDC+-10% Ambient temperature:-40℃~+55℃ Pipe size: 1/8~1/4 Power: 8.2W Surface High temperature: T4 Late delay<8% repeatability < 5% Sensitivity< 3% Voltage range:24VDC pulse width modulation (600 to 800Hz)or PWM pulse width scheduling control.
